Railway & Transportation

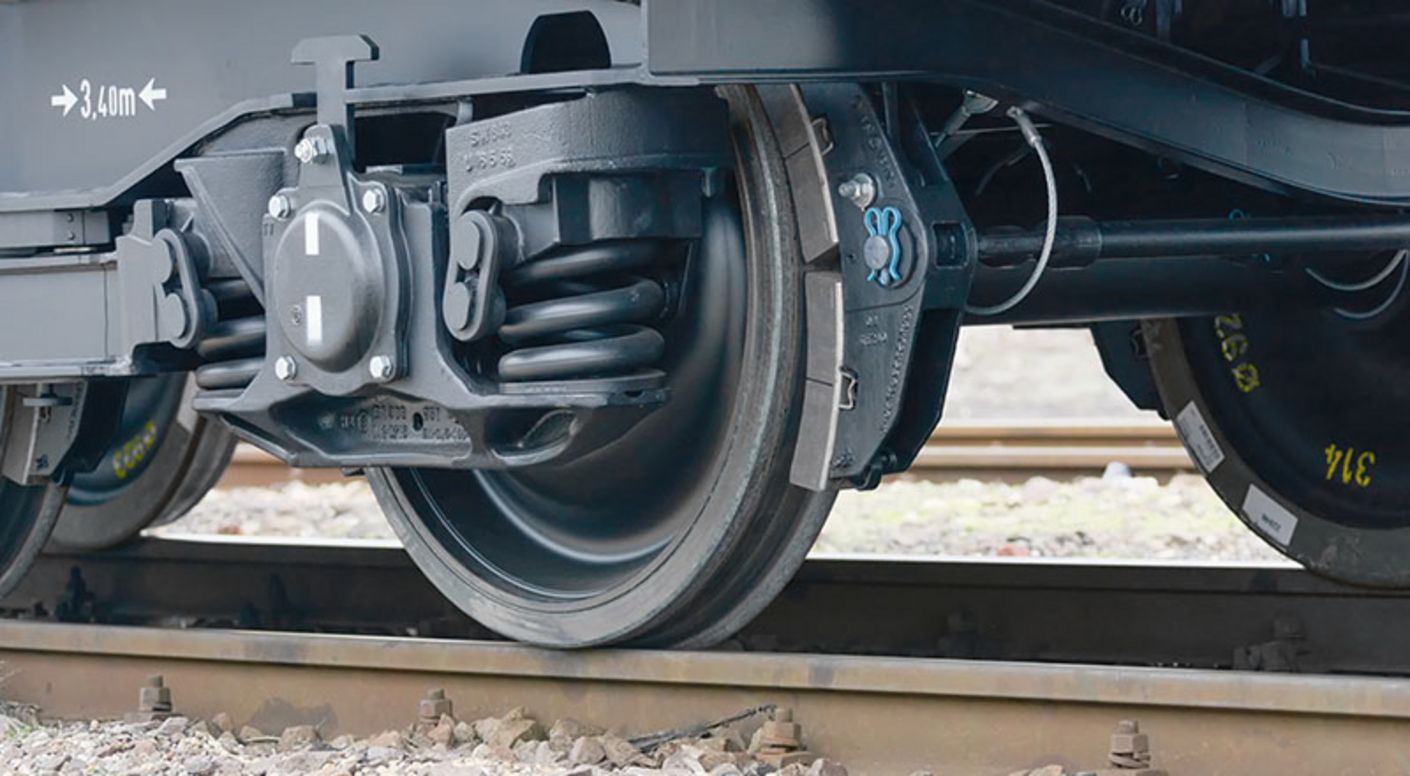

Brake & Traction Control System

Brake and traction control systems have to make sure that it is possible to use and maintain the brakes as efficiently as possible. Therefore, a whole lot of meta-data has to be gathered all the time. Part of this meta-data is immediately used by the system to adjust itself, while other data has to be propagated to other systems analysed elsewhere. This deferred analysis and results thereof should then be also able to individually adjust the brake and traction control system when validated. To shorten time-to-market and reduce implementation complexity and certification efforts, the brake and traction control systems basic functionality – controlling the brakes – should be implemented as most of the other automation industry control functionalities, thus through a PLC (Programmable Logic Control).

Learn more (PDF)

Train Wayside Communication

Critical communication, performance communication and passenger communication may find its way through the same 5G rolling stock gateway. Today’s existing multi-modem 4G routers are only used for passenger communication or other non-critical data. This is due to the existing GSM-R network and the lack of safe and secure solutions for that matter. But due to the ever-increasing data communication bandwidth demand of emerging technologies (e.g. for autonomous rolling stock operations) the current GSM-R network will not be sufficient. Thus, new 5G multi-modem gateways with Safety & Security assurance, and therefore usable for all kinds of communication, will be vital for the success of these new technologies.

Learn more (PDF)

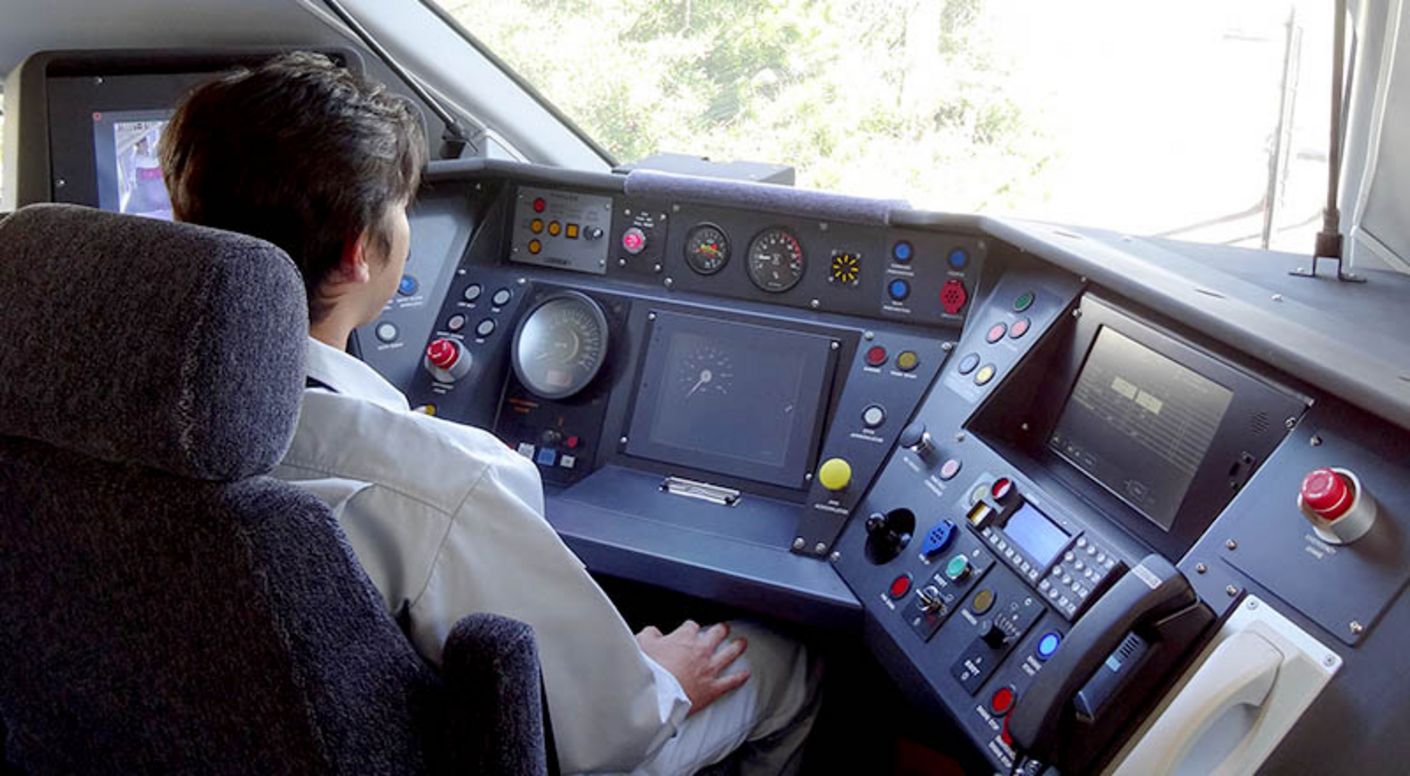

Train Screenboard / Driver Display

Driver display systems (or screen boards) are becoming more and more complex, while integrating highly critical with commodity functions. This trend will continue, leading to configurable multi-function displays (MFDs), as already seen in Avionics or Automotive cockpits. This requires the possibility to run Safety critical UI components, which are to be certified, and in parallel enable feature rich non-critical commodity UI. The later requires the use of standard components, while focusing on a sophisticated UI representation (e.g. through 2D/3D acceleration and rendering through hardware). Safety-critical user interface components will focus on a leaner approach in order to reduce risk and cost of the certification while using a pre-certified UI framework.

Learn more (PDF)

Train Control System

Flexibility and scalability are the most prominent needs for future train control system software platforms. The requirement of being pre-certified up to the highest assurance level according to EN 50128 is self-evident.

• Flexibility shall allow for various heterogeneous functions, legacy applications and sub-systems to be seamlessly integrated and to assure the highest level of independence from the underlaying hardware architecture.
• Scalability shall ensure that, whatever complexity, performance, Safety and Security demands the final use-case may require, the software platform doesn’t have to be changed.
• Furthermore, it shall guarantee that the knowledge gained while developing the first system can be re-used for a number of systems to be developed in the future.

Learn more (PDF)

Functional Safety

PikeOS is pre-certified according to EN 50128 and EN 50657 SIL4 and enables embedded software engineers to build outstanding embedded Railway software fulfilling strong Safety demands.

EN 50128 / EN 50657 Certification Kit

Security

The PikeOS separation kernel itself is small in terms of implementation and its little number of system calls allows comprehensive evaluation and validation. As a matter of fact, PikeOS 5.1.3 (x86 64-bit, ARMv8, PowerPC) has passed the Common Criteria EAL5+ certification.

More about Security   |   Common Criteria Certification Kit
