Modular Hardware with safe & secure Operating System
including Safety Library

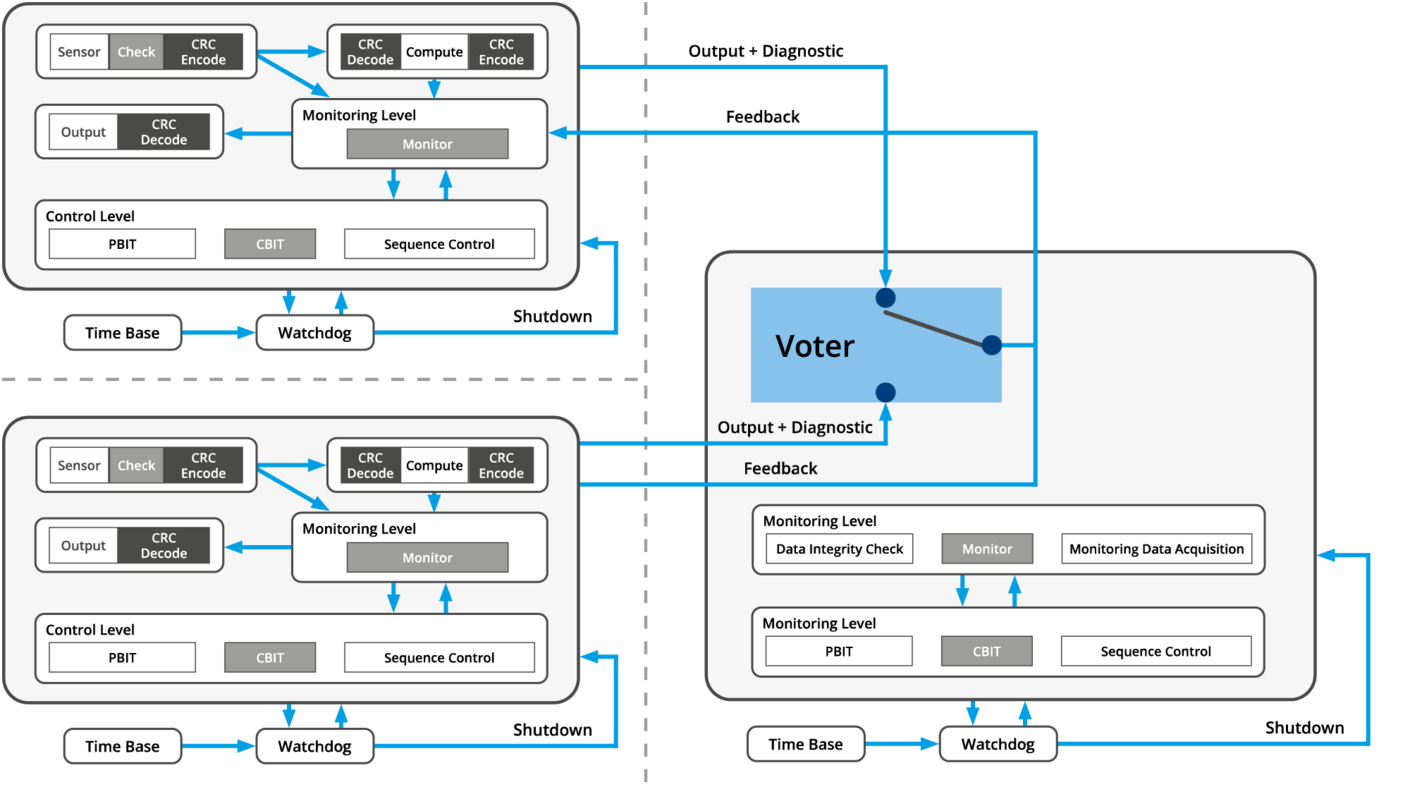

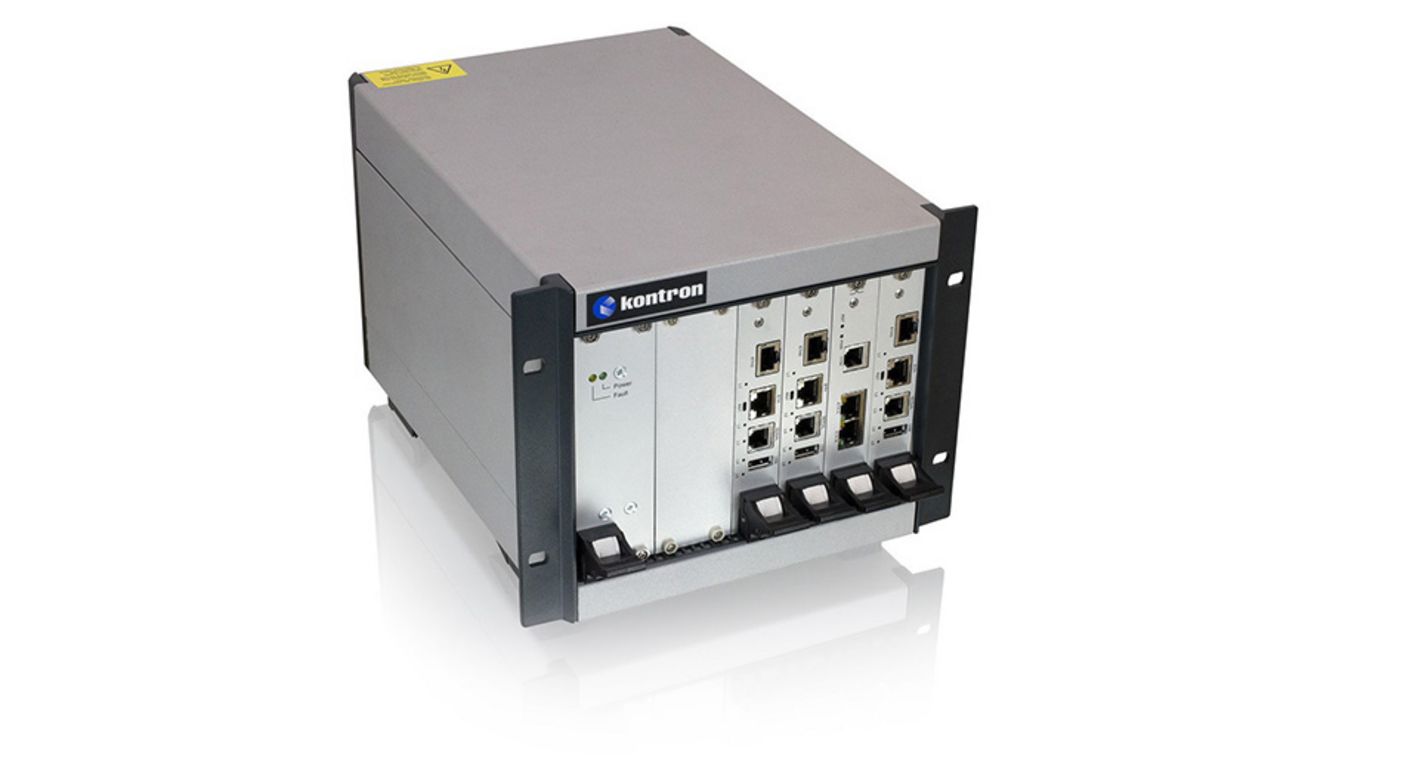

Targeted to Railway applications for signalling, way-side handling and rolling stock, SAFe-VX consists of a modular hardware, operating system and Safety library. It implements a 1oo2D Safety architecture with two channels and a voter. In order to achieve a Safety level of SIL 4, two boards can be run in tandem. The platform is intended to be used within development and simulation environments as well as in real-life scenarios, supporting the highest Safety levels (SIL 4).

Certification kits for hardware and software are available.

Software Architecture

PikeOS is the backbone of the platform, as it naturally fulfils the substantial requirements of determinism and real-time, Security, Safety and virtualization. As a Type 1 hypervisor, it directly runs on the embedded hardware and makes the overall system as performant as possible. Another performance boost comes through the multi-core support, which has proven its maturity in recent Railway projects. PikeOS is the first operating system that has been certified according to SIL 4 in a multi-core project.

The virtualization environment of PikeOS allows to separate and isolate application from each other by means of strict static time- and resource partitioning. This offers the opportunity to run mixed-criticality configurations, such as black-channel communication where a low-critical Linux partition provides a complex (TCP/IP) network stack. At the same time the high-critical application (that provides the functional Safety) runs in a separate partition and cannot be influenced by the Linux partition.

Black-Channel Communication

Networking in Safety-critical Environments: Learn more

CODEO Development Environment

The package SAFe-VX comes as a turnkey-ready developing suite, providing fully representative hardware and a complete toolchain for software development, which is integrated into the Eclipse-based IDE CODEO. The integrated development environment provides all the components that software engineers need to develop embedded applications and includes comprehensive little helpers to finish embedded projects in a time-saving and cost-efficient way.

More about CODEO

About Kontron

The company was established in 1991 and looks back on a history of impressive growth. In 1993 they developed their first fully integrated embedded computer product, and they have been Germany's leading supplier of embedded computer technology since 1995. The move into the foreign markets was funded by a financial investor. In 1997, Kontron also became the No 1 in Europe. Today, they are world market leader and their technologies have repeatedly set new standards; the PISA concept, the ETX and the DIMM PC format are globally recognized ECT (Embedded Computer Technology) standards today.
